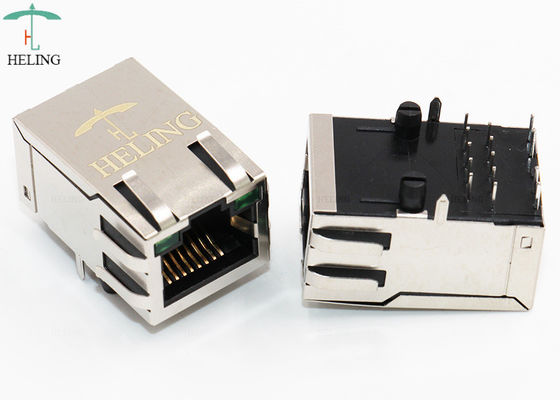

Thru-hole PCB 1000 Base T RJ45 Jack with EMI Gasket Black Housing Modular Jack
Description:
Specfication:
| Part Number: | MJ3B-B211-RSL05T135-1 | ||||||
| Product Family: | 1000 Base T RJ45 Jack | ||||||
| Overview: | 1000 Base T RJ45 1x1 8P8C Right Angle RJ45 Connector Black Housing | ||||||
| Description: | 8 core 1x1 ports Right Angle 1000 Base T RJ45 Jack connector, Shielded with EMI Finger | ||||||
| Operating temprature range: -40℃-70℃ | |||||||
| General | |||||||
| Series: | 1000 Base T RJ45 Jack | ||||||
| Numbers of ports: | 1x1 | ||||||
| Orientation: | Right Angle ( Side entry) | ||||||
| Pin type: | THT solder | ||||||
| Positions/ Loaded contacts | 8P8C | ||||||
| Latch: | Tab up | ||||||
| LEDs: | YES | ||||||
| Shielded: | Shielded | ||||||
| Jack Height: | 13.5mm | ||||||
| Magnetic: | Yes | ||||||
| Performance category: |
1000 M |
||||||
| Power over Ethernet(PoE): | Optional | ||||||
| Physical | |||||||
| Color-Resin: | Black | ||||||
| Durability(mating cycles max): | 750 | ||||||
| Material | Metal: | Phosphor bronze | |||||
| Resin: | Liquid crystal polymer | ||||||
| Plating termination: | Gold Flash | ||||||
| Plating min- mating: | 6u"/15u"/30u" optional | ||||||
| Net Weight: | TBA | ||||||
| PCB: | FR4 | ||||||
| PCB locator: | Yes | ||||||
| PCB retention: | None | ||||||
| PCB retaining post: | T-post | ||||||
| PCB Thickness- Recommended | 1.6mm | ||||||
| Packaging type: | Tray | ||||||
| Temperature range: | -40℃-70℃ | ||||||
| RoHS compliant | YES, RoHS AND Halogen-Free | ||||||
| Electrical | |||||||
| Current rating: | 1.5AMPS | ||||||
| Voltage rating: | 125V AC | ||||||
| Insulation Resistance: | 500MΩ mini | ||||||
| Withstand voltage: | 1000V RMS 60Hz | ||||||
| Contact Resistance: | 50mΩ Max | ||||||
| Grounding to PCB: | YES | ||||||
| Grounding to Panel: | YES | ||||||
Documents:
*** CLICK HERE TO DOWNLOAD THE DRAWING
HELING Right Angle RJ45 Connector Female Receptacle is designed as simple, flexible and low profile for ethernet connectivity applications, in particular, the network interface system etc.
Our Right Angle RJ45 Connector are widely used in:
